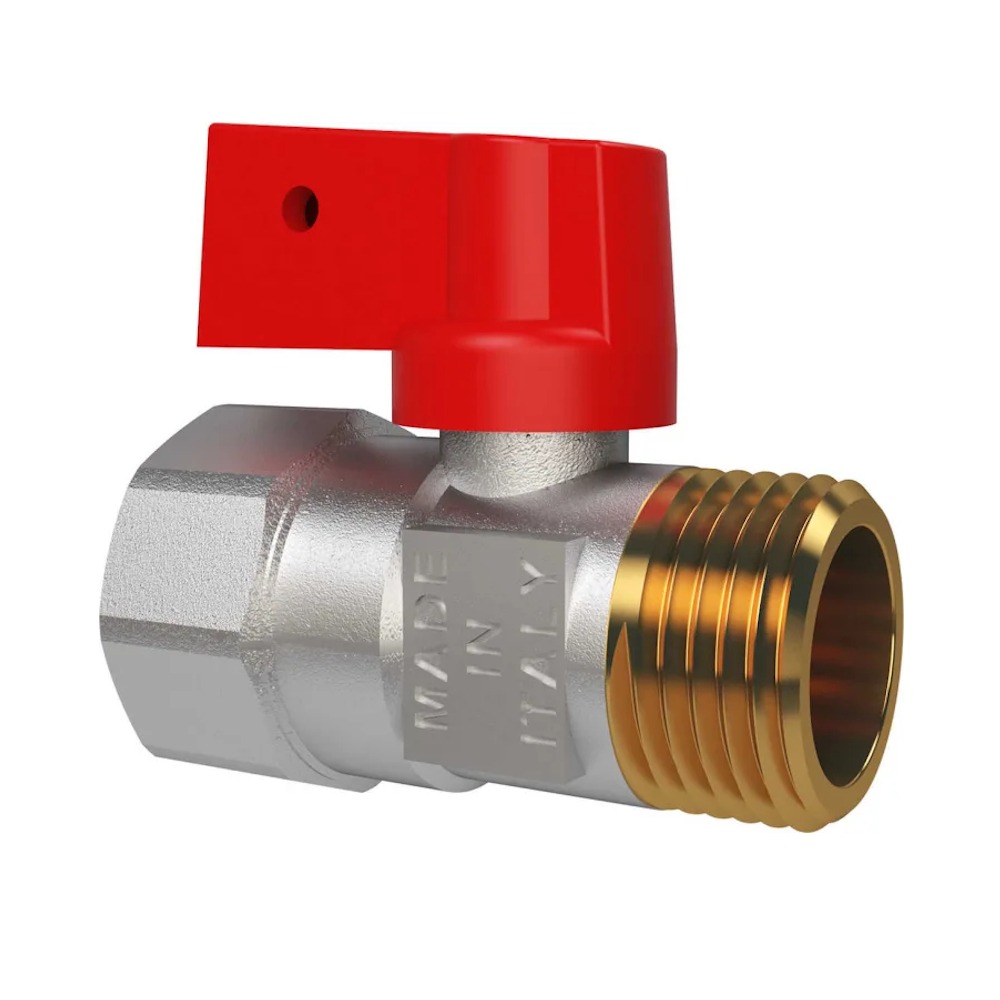

LK Ball Valve 427 Straight Red Knob Internal/External G15

Description

Shut-off valve in dezincification-resistant brass. Flat external G15 thread to be able to connect a flat-sealing coupling. Hole in knob for marking plate.

Specifications

• Dimension: G15
• Pressure/Flow/Temp: 16 bar, temp 0°C to +90°C
• Design: Internal x external thread
• Color: Nickel, red knob
• Surface treatment: Nickel-plated
• Material: AZH brass
• Material quality: Dezincification resistant brass (DZR)
• Material ball seal: PTFE (polytetrafluoroethylene)
• Material ball: Brass
• Material spindle: Brass
• Material spindle seal, primary: NBR (nitrile rubber)
• Material spindle seal, secondary: NBR (nitrile rubber)
• Dimension connection 1: Conn. 15 (1/2")
• Connection 1: Internal thread G, cylindrical (ISO 228-1)
• With connection 1: No
• Connection dimension 2: Port. 15 (1/2")
• Connection 2: External thread G, cylindrical (ISO 228-1)
• With connection 2: No
• Sealing: Other
• With drain valve: No
• With drain option: No
• Model/Version: Straight
• FM-marked: No
• UL-marked: No
• ULC-marked: No
• LPCB-marked: No
• Fireproof: No
• Max. differential pressure at 20°C: 10 bar
• Medically clean: No
• Grease-free: No
• Operation: Knob
• Housing construction: 1-piece
• Full bore: No
