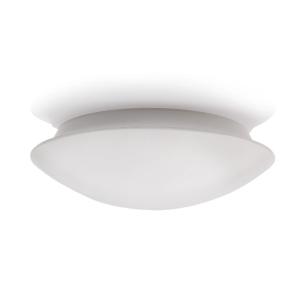

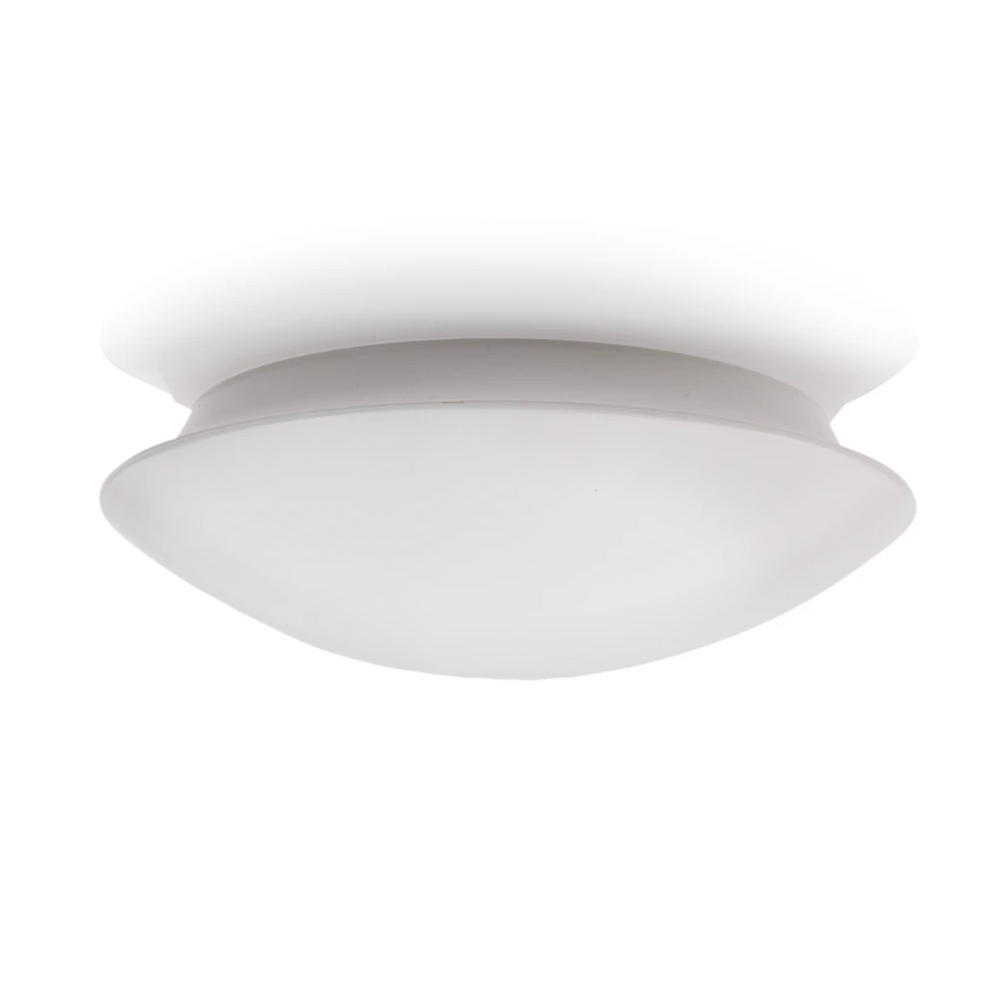

Armatur LED Radar SDIM AVR400 830/840 27W Hvid Legrand

Beskrivelse

AVR400-serien fra Ensto er en stilfuld loftslampe til entréer, gange, trappeopgange, kontorer, hotelværelser og til alle dine behov for belysning i hjemmet.

Teknisk Information

• Slagfasthed (IK): IK05
• Beskyttelsesklasse (IEC 61140): I
• Tilpasset til VDU-arbejde (EN 12464-1): Nej
• Antal poler: 5
• Armatur med begrænset overfladetemperatur "D" (EN 60598-2-24): Nej
• Bluetooth-styret: Nej
• Dæmpning 0-10 V: Nej
• Dæmpning 1-10 V: Nej
• Dæmpning bagkant (faseafbrydelse): Nej
• Dæmpning DALI: Nej
• Dæmpning DMX: Nej
• Dæmpning DSI: Nej
• Dæmpning forkant (faseafbrydelse): Nej
• Dæmpning med touch: Nej
• Dæmpning med trykknap: Nej
• Dæmpning netspændingsmodulation: Nej
• Dæmpningspotentiometer (integreret): Nej
• Programmerbar dæmpning: Nej
• Dæmpning RF: Nej
• Dæmpning producentspecifik: Nej
• Dæmpning Zigbee: Nej
• Driver: LED-driver (constant current)
• Driver included: Yes
• Power factor: 0.93
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: Yes
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light distribution angle: Open beam
• Light output: Direct
• Max. system power: 27W
• With light source: Yes
• With light sensor: Yes
• With air hole: No
• With motion sensor: Yes
• With IFTTT support: No
• Color of light adjustable: Modes
• Color rendering index (CRI/Ra): 80-89
• Adjustable light distribution: No
• Luminous flow adjustment: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Cover with insulation: Yes
• Grid design: None
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through wiring

Specifications

• Light color: White
• Color of housing/enclosure/frame: White
• Material of housing/enclosure/frame: Plastic
• Height/depth: 127mm
• Length: 400mm
• Width: 400mm
• Installation diameter: 390mm
• Installation height/depth: 42mm
• Food Contact Material: Nej
• REACH: Nej
• ROHS: Ja
